Our 3 axle lowbed trailer is engineered for heavy haulage and oversized cargo transport, offering 40-100 ton load capacity with superior stability. Designed for construction, mining, and wind energy industries, this trailer features.
Our 3 axle lowbed trailer is engineered for heavy haulage and oversized cargo transport, offering 40-100 ton load capacity with superior stability. Designed for construction, mining, and wind energy industries, this trailer features:
1.Reinforced steel frame (Q345B grade) for extreme durability.
2.Low deck height (0.8m-1.2m) for easy loading of tall machinery.
3.Detachable gooseneck & hydraulic options for flexible configurations.
Ideal for transporting excavators, bulldozers, and wind turbine components, our 3 axle lowbed trailers comply with international road safety standards (DOT/EN). Customizable in length (12m-20m) and axle configurations to meet your logistics needs.
Why Choose Our 3 Axle Lowbed Trailer?
✔ 10+ Years of heavy trailer manufacturing expertise.
✔ Global shipping & after-sales support.
✔ Competitive pricing with OEM/ODM services.
Main advantages
1. Ultra-high load capacity – 3 axle lowbed trailers are designed for heavy loads, with a load capacity of up to 40-100 tons, suitable for oversized transportation such as construction machinery, wind power equipment, and large steel structures.
2. Excellent stability – Three-axis design disperses weight pressure, reduces road damage, and ensures safe and stable long-distance transportation.
3. Ultra-low loading platform – Low bed structure, only 0.8-1.2 meters above the ground, convenient for loading and unloading of ultra-high and large goods.
4. High-strength structure – 3 axle lowbed trailers are made of Q345B high-strength steel, reinforced welding at key parts, impact resistance, deformation resistance, and extended service life.
5. Flexible customization – 3 axle lowbed trailer can be equipped with hydraulic gooseneck, expandable side panels, and anti-slip patterned plates to meet different transportation needs.
Product Features
① Structural Design
Three-axis balancing system: optimizes load distribution, reduces single-axis pressure, and complies with DOT/EN road regulations.
Removable gooseneck: convenient for loading extra-long cargo and improving turning flexibility.
Hydraulic lifting system: quickly adjust the platform angle to improve loading and unloading efficiency.
② Safety Performance
Dual brake system: ensures braking safety on steep slopes and long downhill sections.
LED warning lights & reflective signs: meet ISO international transportation safety standards, safer driving at night.

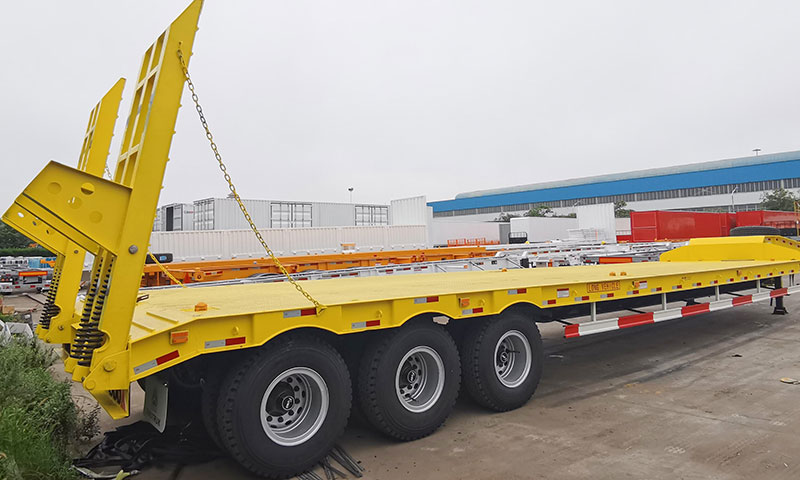

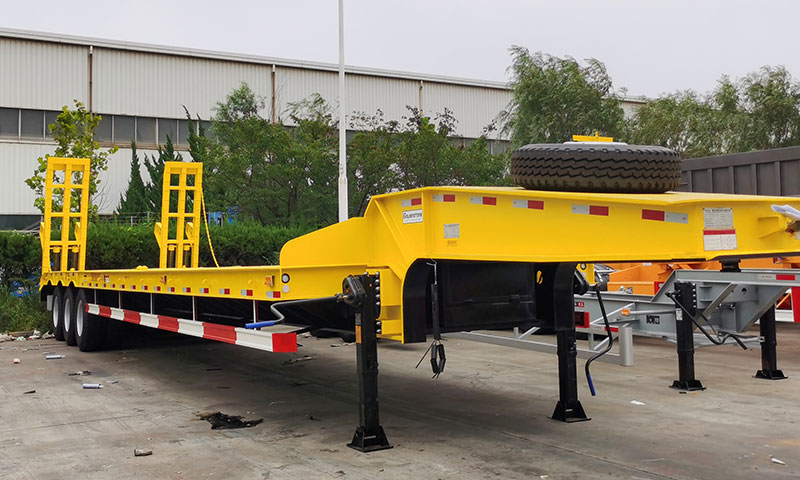

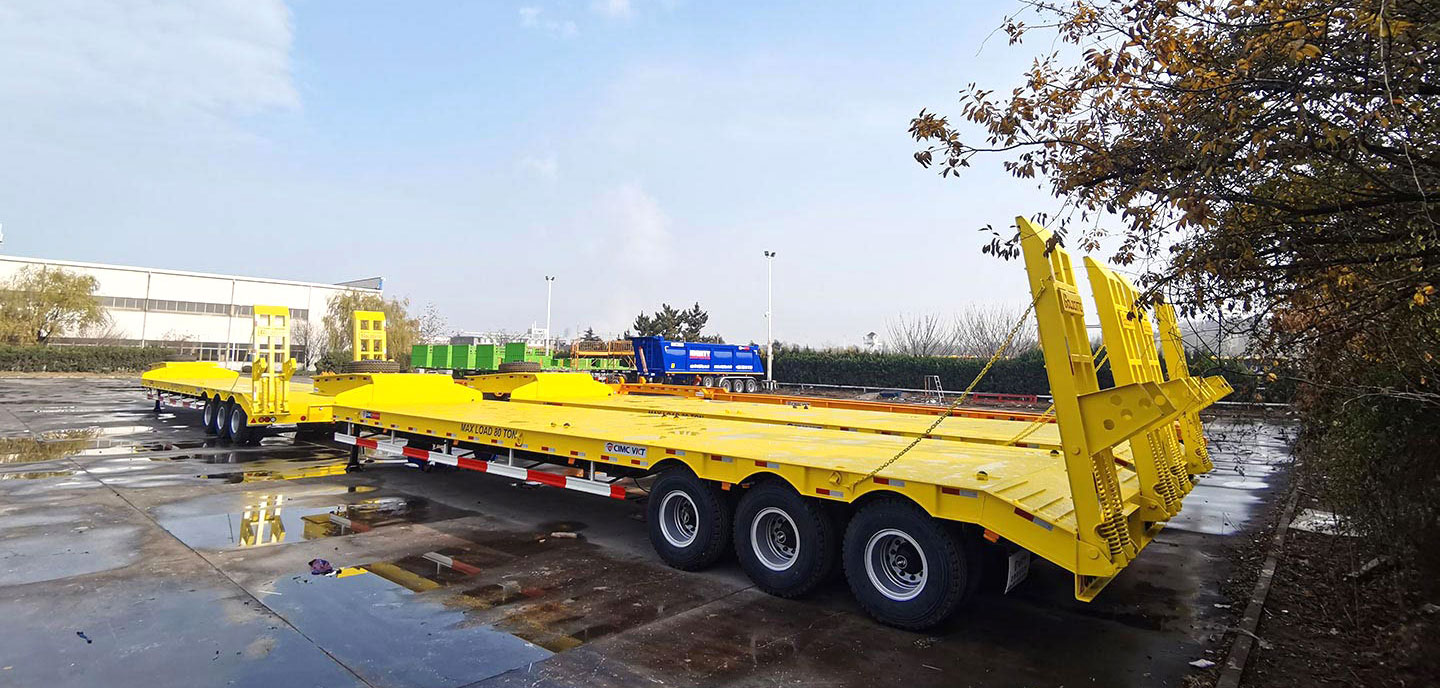

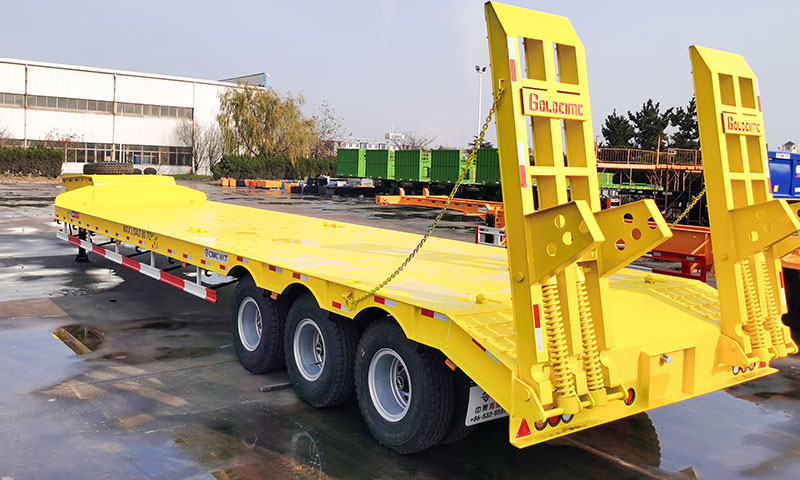

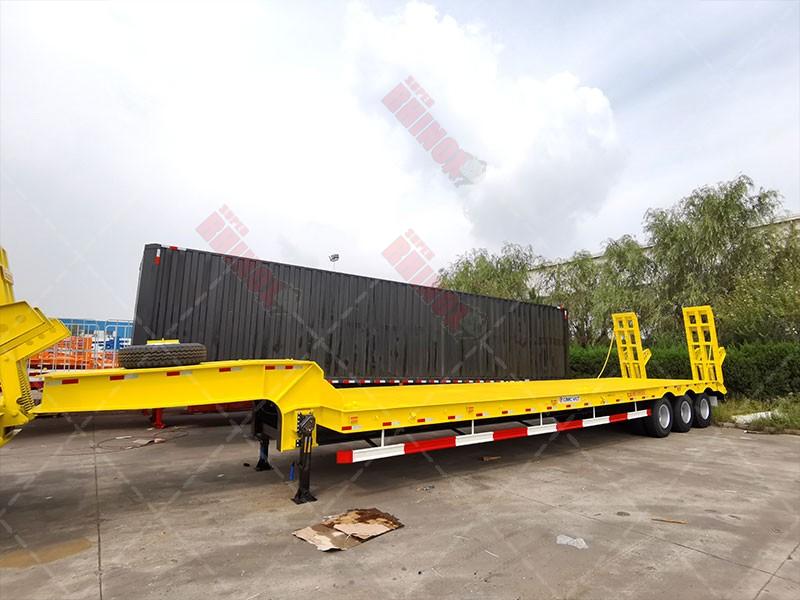

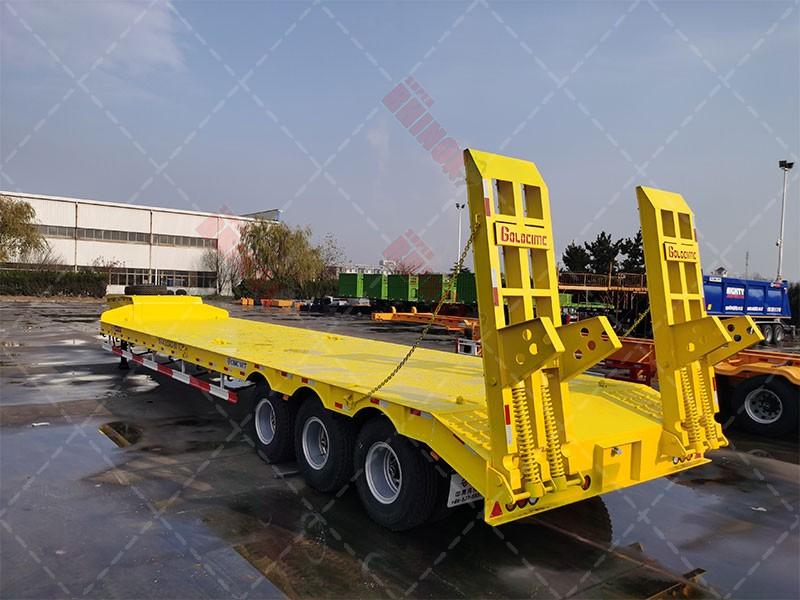

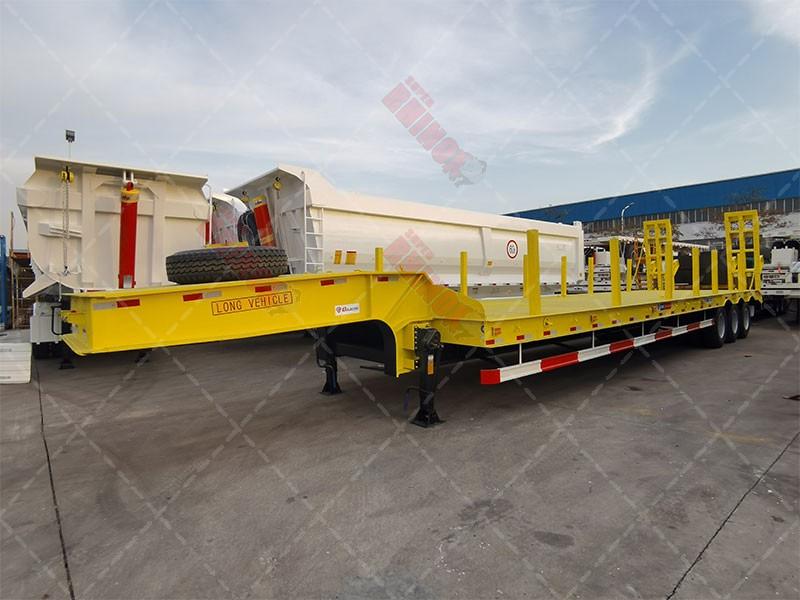

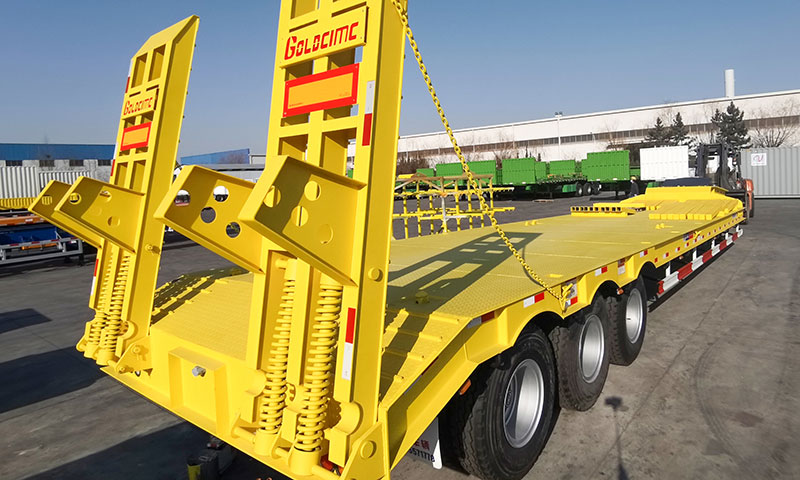

Reference picture |
| ||
Type | 12m 3 axle Lowbed trailer | ||
Model | ZCM9400TBDM | ||

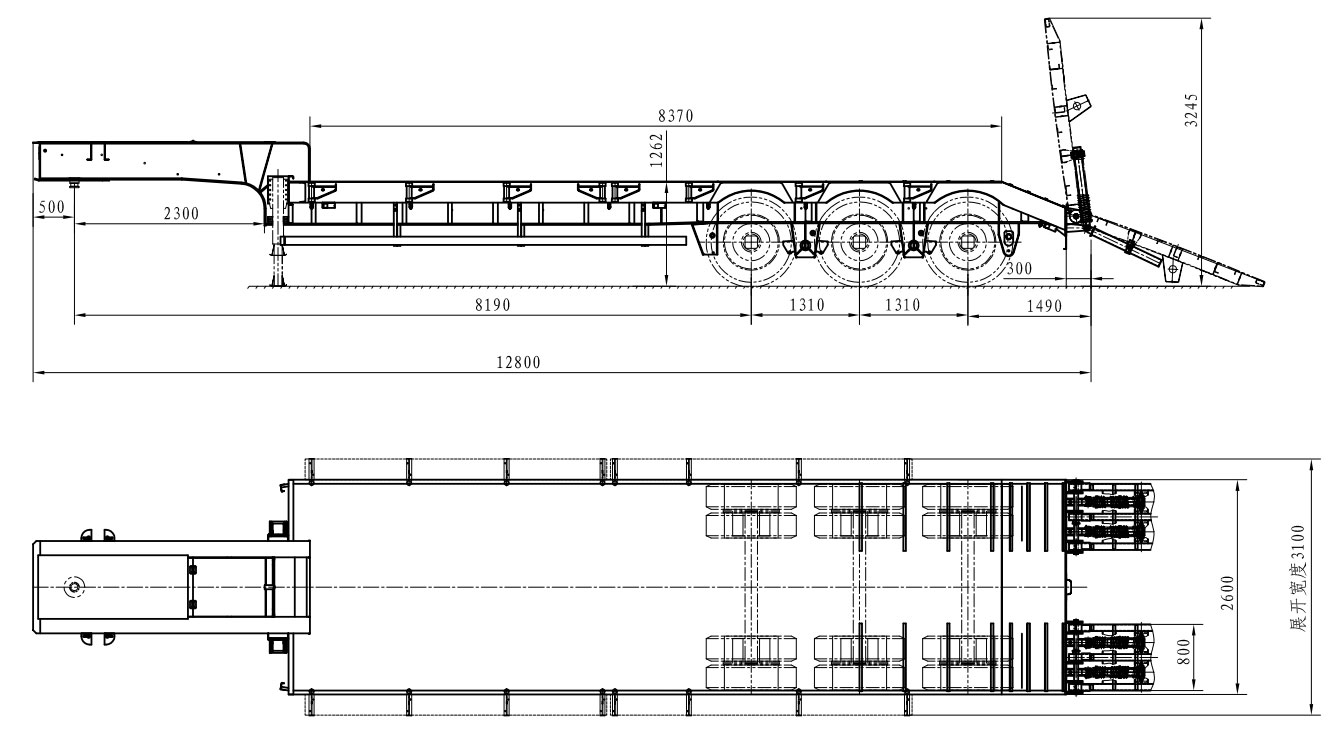

Parameter | Dimensions | Overall Dimensions (mm) | L×W×H:12,800 × 2,600 (extended to 3200mm) × 3253 |
King pin setting (mm) | Approx. 450 | ||
Fifth wheel height (mm) | The height will be adjusted according to specification of tractor | ||
Axle space (mm) | 8,160+1,310+1,310 | ||
Weight | Tare weight (kg) | 9,360 | |
Max. Payload (kg) | 40,000 | ||
Gross weight (kg) | 49,360 | ||
Fabric & Configuration | Main beam | Upper/lower wing plate Flange 14mm/16m, Web 8mm | |
Floor | Checker plate, 4mm | ||
Painting | Primer and topcoat | ||
Tire | Type: 12x22.5, equip 13pcs per chassis, ling long or sanjiao | ||
Rim | Type: 9.0*22.5, equip13pcs per chassis | ||
Axle | FUWA 113T*3 sets | ||
King pin | JOST 50# | ||
Suspension | Three axle Mechanical suspension for heavy load | ||
Leaf spring | 8pcs, 90*16mm, | ||
Landing gear | JOST | ||
Brake system | Dual air brake system; No ABS | ||
ABS | No | ||
Electric system | 24V, LED lights. | ||
Tool box | One | ||
Spare tire carrier | Two | ||
Color | To be determined | ||
Others | The Price is USD18150 CIF Walvis Port Namibia | ||
